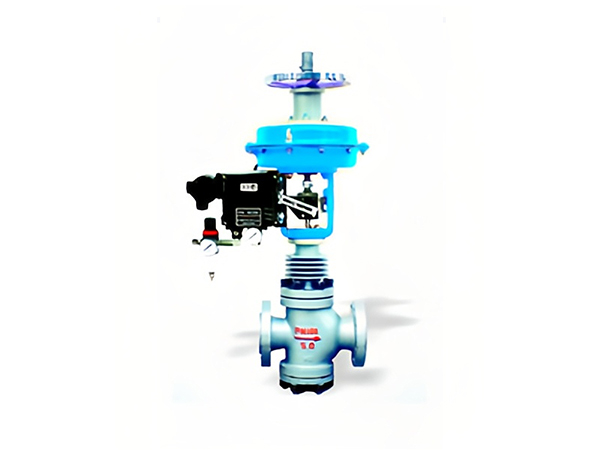

The N series new pneumatic diaphragm double-seat control valve adopts a double-guided structure and is equipped with a multi-spring actuator. It has the advantages of compact structure, light weight, sensitive action, large valve capacity, precise flow characteristics and convenient disassembly and assembly. It is widely applied to precisely control media such as gases, liquids and steam, and keep process parameters like pressure, flow rate, temperature and liquid level at the set values. It is particularly suitable for occasions where the pressure difference is large and the allowable leakage is also large, and the medium is not very clean. It is widely applied in the automatic regulation and remote control of industrial production processes such as chemical engineering, petroleum, metallurgy, power stations, light textile, papermaking and pharmaceuticals.

【 Product Features 】

1.The top and bottom double-guided structure is adopted, which enhances the stability of the valves of the entire machine.
   2. The unbalanced force it experiences is small; Determined by the characteristics of the valve, the hydrostatic pressure acts simultaneously on the two valve cores, causing them to cancel each other out. Therefore, the unbalanced force it experiences is small, allowing the pressure difference to increase. The thrust required by the actuator was reduced.
   3. Large circulation capacity; Compared with other control valves of the same diameter, the double-seat valve can carry more fluid. The flow capacity of the double-seat valve of the same diameter is approximately 20-50% greater than that of the single-seat valve.
